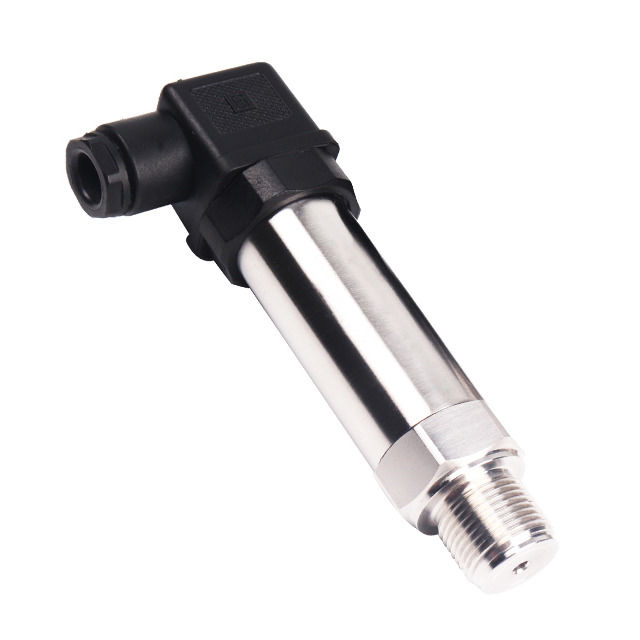

Water Oil Air Pressure Gauge Pressure Sensor Submersible Pressure Sensor

Name: Water Oil Air Pressure Gauge Pressure Sensor Submersible Pressure Sensor
Brand: Anhui Ruiling Meter Manufacturing Co., Ltd.
SKU: RL-131
Price: 30.00 USD
Availability: InStock

Product Details

Place of Origin: Anhui, China

Brand Name: FIMEET

Certification: ISO9001

Model Number: RL-131

Payment & Shipping Terms

Minimum Order Quantity: 49 Pieces

Price: $45.00(49 - 198 Pieces) $40.00(199 - 498 Pieces) $35.00(499 - 798 Pieces) $25.00(>=799 Pieces)

Packaging Details: one pc by corrugated carbon/wooden case

Supply Ability: 10000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1years	Customized Support:	OEM
Place Of Origin:	Anhui, China	Brand Name:	FIMEET
Model Number:	RL-131	Power Supply:	24VDC
Accuracy:	0.3%FS/0.5%FS	Product Name:	Pressure Transducer
Application:	Water Oil Air Pressure Measurement	Electrical Connection:	M20*1.5/ 1/2NPT
Overload Pressure:	150%FS	Signal Output:	4~20mA;1~5V;0~10V;
Measuring Range:	0.1...0~100Mpa	Water Proof:	IP65
OEM:	YES	Certification:	ISO9001

Warranty:	1years
Customized Support:	OEM
Place Of Origin:	Anhui, China
Brand Name:	FIMEET
Model Number:	RL-131
Power Supply:	24VDC
Accuracy:	0.3%FS/0.5%FS
Product Name:	Pressure Transducer
Application:	Water Oil Air Pressure Measurement
Electrical Connection:	M20*1.5/ 1/2NPT
Overload Pressure:	150%FS
Signal Output:	4~20mA;1~5V;0~10V;
Measuring Range:	0.1...0~100Mpa
Water Proof:	IP65
OEM:	YES
Certification:	ISO9001

Water Oil Air Pressure Gauge Pressure Sensor Submersible Pressure Sensor

Product Description

MAIN FEATURES

1.Compact pressure transmitter adopts high performance pressure sensor chip 2.With advanced circuit treatment and temperature compensation technology 3.Converts a change in pressure into a linear current or voltage signal

Converter

A/D conversion circuit using 16-bit low-power integrated circuit, will demodulator output analog current into digital quantity, provided to the microprocessor as input signal! The D/A converter converts the corrected digital signal sent by the microprocessor into 4-20mA analog signal and outputs it to the loop.

Material

304 stainless steel

Buffer damping

Diaphragm protection

shock resistance

Smart chip

The circuit board module of the transmitter is a circuit board using surface encapsulation technology. The circuit board receives the signal from the sensor and modifies and linearizes it. The output part of the circuit board module converts the digital signal into an analog output signal.

Our Company/Factory

Anhui Ruiling Meter Manufacturing Co., Ltd., was established in 2006; which is an industrial sensor and National high-tech enterprises that exhibit applications, focusing on manufacturing and sales of various types of industrial sensors, intelligent metering integrated equipment,R&D, and IoT applications. The company was listed on the Anhui Equity Exchange Center in May 2015. The company has passed ISO9001 quality management certification and GB/T29490-2013 intellectual property management system certification. Ruiling have established close cooperation with Tianjin University, Hebei University, Hefei University of Technology and other universities successively, Now R&D personnel in company accounted for 33% of the total number of employees; and employees with bachelor’s degree accounted for above 40% of the total number of employees; in addition to, research and development expenses account for 11% of annual sales.

Our Team & Production Equipment

R&D personnel in company accounted for 33% of the total number of employees; and employees with bachelor’s degree accounted for above 40% of the total number of employees; in addition to, research and development expenses account for 11% of annual sales.

Exhibition

Production Flow Chart

R&B

It has established close cooperation with Tianjin University, Hebei University, Hefei University of Technology and other universities. At present, the company's R&D personnel account for 33% of the total workforce; Employees with bachelor degree or above account for 40% of the total number of employees; Spending on research and development accounted for 11 per cent of annual sales.

QC/Certificate

SENSOR

Multiple inspection procedures, strict control of materials Select molding

Stainless steel material inspection

Parts position accuracy detection

Welding quality inspection

CONVERTER

Sampling inspections are strictly controlled according to standard standards

High and low temperature detection

Circuit board aging detection

Converter detection

FINISHED PRODUCT

Multiple performance tests to ensure quality

Vibration influence error

Shell fluid pressure detection

Insulation strength test

PACKAGING AND SHIPPING

Packaging inspections to ensure the integrity of the goods

Complete accessories

Packaging reliability

High and low temperature detection

By Sea	Delivery from Any seaport of China if customer has special requirements
By Air	Departure from Any Airport of China if customer has special requirements
By Express	By any Express of China if customer has special requirements
Delivery time	2~7days(usually by express door to door(DHL, UPS, Fedex, TNT etc.)
