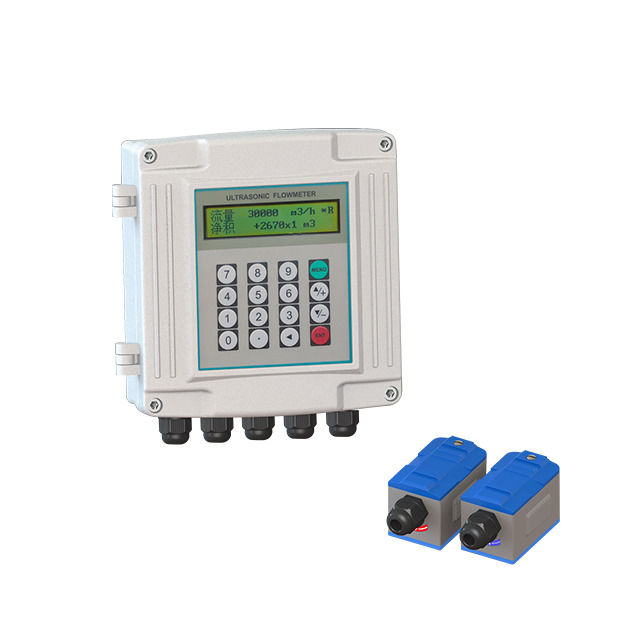

External Clamped Ultrasonic Flowmeter Water Flowmeter DN15-DN100 FIM-HD-WJ-X

Name: External Clamped Ultrasonic Flowmeter Water Flowmeter DN15-DN100 FIM-HD-WJ-X
Brand: Anhui Ruiling Meter Manufacturing Co., Ltd.
SKU: FIM-HD-WJ-X
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: Anhui, China

Brand Name: fimeet

Model Number: FIM-HD-WJ-X

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: $218.00(1 - 49 Pieces) $198.00(>=50 Pieces)

Packaging Details: one pc by corrugated carbon/wooden case

Get Best Price

Product Details

Product Description

Highlight:

Warranty:	1 Years	Customized Support:	OEM
Place Of Origin:	Anhui, China	Brand Name:	Fimeet
Model Number:	FIM-HD-WJ-X	Type:	Variable Area Water Flowmeters, Ultrasonic Flow Meter
Accuracy:	Â±1%	Output Signal:	4-20mA/Pulse
Communication:	RS485	Power Supply:	DC(8~36)V Or AC(85~264)V
Diameter:	DN15-100	Temperature:	(-30~90)â„ƒ
Medium:	Water,cooling Water,chilled Water,hot Weter Etc	Protection Grade:	Transmitter:IP67, Sensor:IP68
Probe:	A Small Probe

Warranty:	1 Years
Customized Support:	OEM
Place Of Origin:	Anhui, China
Brand Name:	Fimeet
Model Number:	FIM-HD-WJ-X
Type:	Variable Area Water Flowmeters, Ultrasonic Flow Meter
Accuracy:	Â±1%
Output Signal:	4-20mA/Pulse
Communication:	RS485
Power Supply:	DC(8~36)V Or AC(85~264)V
Diameter:	DN15-100
Temperature:	(-30~90)â„ƒ
Medium:	Water,cooling Water,chilled Water,hot Weter Etc
Protection Grade:	Transmitter:IP67, Sensor:IP68
Probe:	A Small Probe

External Clamped Ultrasonic Flowmeter Water Flowmeter DN15-DN100 FIM-HD-WJ-X

Product Description

Overview

1. Modular hardware design, easy production and maintenance operation; 2, Electrical isolation RS485 interface, including MODBUS, M-BUS and other more than 10 communication protocols; 3, electrical isolation 0-20mA or 4-20mA current ring output; 4, with heat measurement function; 5, 8-36VDC,220VAC power supply mode is optional; 6, With manual accumulator and batch controller and other functions; 7. Annual, month and day cumulative record function, can record the previous 512 days (daily), the first 128 months (monthly) cumulative flow and heat and other data; 8. Three-way analog input with precision of 0.1%;Please understand the working power supply and model of the product before use, to prevent improper operation or damage caused by misconnection.

By the window product design software, all input parameters, set and display measurement result with unified subdivided into more than 100 separate window, according to the user through the "access" specific window can achieve input parameters, change the setting or display measurement results, the purpose of window with two digits (including + number) number, from 00 to 99, and then the + 0, + 1, etc. The window number or address code of the window indicates a specific meaning.

Install the sensor, first choose the installation position (installation position to full pipe steady flow, far away from the pump and elbow!), is selected, use the grinder or sandpaper will want to install the sensor area polishing, remove rust, paint or rust layer pipe metal on nature, then daub on the sensor enough coupling agent, and finally the sensor on the tube wall and bundled well, clinging to the fixture (stainless steel strip) should be fixed well, make the uniform force; Pay attention to the sensor and the wall can not be empty air bubbles and gravel and other dirt.

The power wiring is marked according to the wiring diagram: there are two kinds of power supply, AC 220V and DC 24V, one of which is optional

Technical characteristics

1. Measuring accuracy: 1.0%; 2, working power supply: isolation DC8-36V or AC85-264V; 3, power consumption: working current 50mA(not connected to the keyboard and buzzer does not sound); 4, Optional output: 1 channel standard isolation RS485 output; 1 channel isolation 4-20mA or 0-20mA output; Dual isolation OCT output (OCT1 pulse width between 6-1000ms programmable, default 200ms); 1 way bi-directional serial peripheral universal interface, can be directly connected in series form of multiple such as 4-20mA analog output board; 5, Optional input: three 4-20mA analog input loop; 6. Display: 2×10 Chinese backlight display (Chinese and English bilingual optional); 7. Operation: 16 button windowing operation; 8, Other functions: automatic memory of the first 512 days, the first 128 months, the first 10 years of positive and negative net cumulative flow automatic memory of the first 30 times on, power off time and flow and can realize automatic or manual supplement, and can be read through the Modbus protocol; 9, flow sensor: external clamp type;

Our Company/Factory

Anhui Ruiling Meter Manufacturing Co., Ltd., was established in 2006; which is an industrial sensor and National high-tech enterprises that exhibit applications, focusing on manufacturing and sales of various types of industrial sensors, intelligent metering integrated equipment,R&D, and IoT applications. The company was listed on the Anhui Equity Exchange Center in May 2015. The company has passed ISO9001 quality management certification and GB/T29490-2013 intellectual property management system certification. Ruiling have established close cooperation with Tianjin University, Hebei University, Hefei University of Technology and other universities successively, Now R&D personnel in company accounted for 33% of the total number of employees; and employees with bachelor’s degree accounted for above 40% of the total number of employees; in addition to, research and development expenses account for 11% of annual sales.

Our Team & Production Equipment

R&D personnel in company accounted for 33% of the total number of employees; and employees with bachelor’s degree accounted for above 40% of the total number of employees; in addition to, research and development expenses account for 11% of annual sales.

Exhibition

R&B

It has established close cooperation with Tianjin University, Hebei University, Hefei University of Technology and other universities. At present, the company's R&D personnel account for 33% of the total workforce; Employees with bachelor degree or above account for 40% of the total number of employees; Spending on research and development accounted for 11 per cent of annual sales.

QC/Certificate

SENSOR

Multiple inspection procedures, strict control of materials Select molding

CONVERTER

Sampling inspections are strictly controlled according to standard standards

Vibration influence error

Shell fluid pressure detection

Insulation strength test

PACKAGING AND SHIPPING

Packaging inspections to ensure the integrity of the goods

Complete accessories

Packaging reliability

High and low temperature detection

By Sea	Delivery from Any seaport of China if customer has special requirements
By Air	Departure from Any Airport of China if customer has special requirements
By Express	By any Express of China if customer has special requirements
Delivery time	2~7days(usually by express door to door(DHL, UPS, Fedex, TNT etc.)
